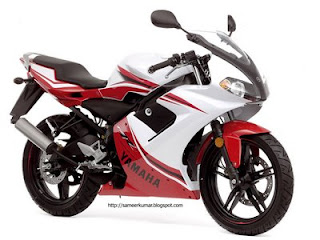

| Yamaha TZR 50 |
| Yamaha's profilation of this bike |
| With a design influenced by the R-series supersport bikes, there’s no better place to start your supersport life than on a TZR50. Feel the power of the liquid-cooled 2-stroke 50cc engine and shift smoothly through the 6-speed gearbox. |
| General moped information | |
|---|---|
| Model: | Yamaha TZR 50 |
| Year: | 2010 |
| Category: | Sport |
| Rating: | 55.4 out of 100. Show full rating and compare with other bikes |
 |
| Yamaha TZR 50 |
| Engine and transmission | |
|---|---|
| Displacement: | 49.70 ccm (3.03 cubic inches) |
| Engine type: | Single cylinder, two-stroke |
| Power: | 2.68 HP (2.0 kW)) @ 6250 RPM |
| Torque: | 2.87 Nm (0.3 kgf-m or 2.1 ft.lbs) @ 5500 RPM |
| Compression: | 11.5:1 |
| Bore x stroke: | 40.3 x 39.0 mm (1.6 x 1.5 inches) |
| Ignition: | CDI |
| Lubrication system: | Separate lubrication |
| Cooling system: | Liquid |
| Gearbox: | 6-speed |
 |
| Yamaha TZR 50 |
| Chassis, suspension, brakes and wheels | |
|---|---|
| Front suspension: | Telescopic fork |
| Front suspension travel: | 130 mm (5.1 inches) |
| Rear suspension: | Swingarm |
| Rear suspension travel: | 31 mm (1.2 inches) |
| Front tyre dimensions: | 100/80-17 |
| Rear tyre dimensions: | 130/70-17 |
| Front brakes: | Single disc |
| Front brakes diameter: | 280 mm (11.0 inches) |
| Rear brakes: | Single disc |
| Rear brakes diameter: | 220 mm (8.7 inches) |
 |
| Yamaha TZR 50 |
| Physical measures and capacities | |
|---|---|
| Weight incl. oil, gas, etc: | 128.0 kg (282.2 pounds) |
| Seat height: | 815 mm (32.1 inches) If adjustable, lowest setting. |
| Overall height: | 1,105 mm (43.5 inches) |
| Overall length: | 2,002 mm (78.8 inches) |
| Overall width: | 689 mm (27.1 inches) |
| Ground clearance: | 151 mm (5.9 inches) |
| Wheelbase: | 1,341 mm (52.8 inches) |
| Fuel capacity: | 14.00 litres (3.70 gallons) |
 |
| Yamaha TZR 50 |
| Other specifications | |
|---|---|
| Starter: | Electric |
| Color options: | Blue, gray |
